ACORA-B

ACORA-B
Aplicaciones: Acoples Rápidos Hidráulicos





INTERCHANGE STANDARD

Parker 60, Perfecting H, Faster HNV, Safeway S10, Snap Tite 72, Hansen HK, Aeroquip FD45, DNP PBV, Stucchi IRB

APPLICATION

ACORA-B Series are used across the spectrum of hydraulic applications. Their general solidity permits the strenuous applications in aeronautics, electronic and automotive industry.

CHARACTERISTICS

The availability of ACORA-B Series quick couplings in a broad range of metals (brass, steel and stainless steel) and seals materials allows their use with most fluids.





Materials: zinc-plated carbon steel body
Valve: Poppet Type
Back-up ring: in pure Teflon
Seals: standard in nitrile NBR.
Working temperature: with standard seals -25℃+ 125℃

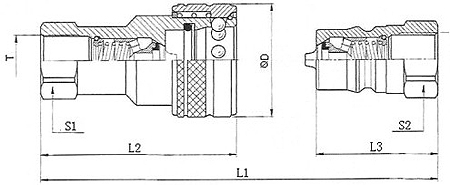

CH&J ISO L1 L2 L3 ØD S1 S2 T
ACORA-B-04 6.3 72.5 57 36 27.5 19 19 1/4"NPT
ACORA-B-06 10 80 65 40 35 22 22 3/8"NPT
ACORA-B-08 12.5 94.5 74 46.5 44 27 27 1/2"NPT
ACORA-B-12 20 112.5 89 57.5 52 34 34 3/4"NPT
ACORA-B-16 25 132.5 106 65.5 60 41 41 1"NPT



ACORA-B TECHNICAL DATA



Nominal size Max.working pressure Rated flow Min burst pressure Fluid spillage
Male Female Coupled
CH&J ISO (bar) (l/m) (bar) (bar) (bar) (cc)
ACORA-B-04 6.3 250 12 1100 1850 1000 1
ACORA-B-06 10 250 23 1430 1460 1370 2.4
ACORA-B-08 12.5 250 45 1100 1470 1100 3.9
ACORA-B-12 20 250 106 1000 1390 1230 11
ACORA-B-16 25 200 189 1100 1110 1020 19
