ACORA-M
|
INTERCHANGE STANDARD |
Parker6100, Perfecting W, Faster FB, Safeway S51, Snap Tite 78, Tomco A51, Aeroquip 5100 |
|
APPLICATION |
The ACORA-M Series, thread-to-connect couplings can be used in a wide range of industrial applications where heavy-duty couplings are required that can be connected under pressure, with little or no spillage. It is ideal for connecting hydraulic lines on oil field equipment like power tongs, swivels and mobile drilling rigs. It is also widely used on dump trailers to connect the tractor to wet-line hydraulic systems. |
|
CHARACTERISTICS |
It offers brass caps and plugs for male/female. Corrosion resistant brass body makes this coupling compatible with a broad range of media and provides versatility. |
SPECIFICATION
|
|
MATERIALS: |
Brass body with zinc-plated carbon steel wing |
|
SEALS: |
standard in nitrile FKM |
|
|
BACK-UP RING: |
in pure Teflon |
|
|
WORKING TEMPERATURE: |
-25℃+ 200℃ |
|

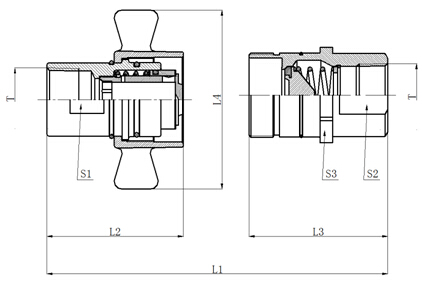

CH&J |
ISO |
L1 |
L2 |
L3 |
L4 |
S1 |
S2 |
S3 |
T |
|
ACORA-M-1 |
25 |
152 |
93 |
90 |
111 |
36.5 |
40 |
47.6 |
1” NPT |
|
ACORA-M-1-1/4 |
31.5 |
160 |
101 |
94 |
131.8 |
45.2 |
47.7 |
54 |
1-1/4” NPT |
TECHNICAL DATA
|
NOMINAL SIZE |
MAX. WORKING PRESSURE |
RATED FLOW |
MIN BURST PRESSURE |
FLUID SPILLAGE |
|||
|
Male |
Female |
Coupled |
|||||
|
CH&J |
ISO |
(BAR) |
(L/M) |
(BAR) |
(BAR) |
(BAR) |
(CC) |
|
ACORA-M-1 |
25 |
200 |
160 |
620 |
620 |
620 |
0.2 |
|
ACORA-M-1-1/4 |
31.5 |
200 |
220 |
510 |
550 |
550 |
0.5 |
