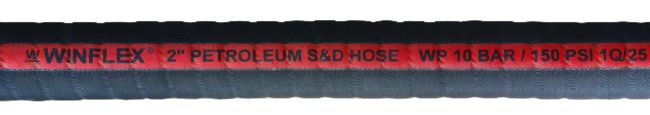

W-TANK 150 CORRUGATED

W-TANK 150 CORRUGATED
Aplicaciones: Petróleo / Aceite

PETROLEUM SUCTION AND DELIVERY HOSE WP 10 BAR/150 PSI
Tube Oil-resistance NBR
Reinforced Multiple textile layerswith two helix wire
Cover polymer alloy rubber and NBR flat corrugated. Black (red stripe).
Application WINFLEX  TANK 150 is for use in tank truck and in-plant operations. Can transfer petroleum products up to 50% aromatic content. Capable of reaching a maximum operating pressure of 150 PSI and temperatures up to +80°C as well.
Temperature -20°C to + 80°C
Safety factor 3 :1





I.D. O.D WALL THICKNESS WORKING PRESSURE BURST PRESSURE VACUUM BEND RADIUS WEIGHT (APPROX) STANDARD
(MAX) (MIN) (MAX) (MIN) LENGTH
Inch Mm Mm Mm Bar Psi Bar Psi % Mm Kg/m M
1 25 36.2 5.6 10 150 30 450 100 70 0.874 60
1.1/4 32 43.6 5.8 10 150 30 450 100 90 1.115 60
1.1/2 38 49.6 5.8 10 150 30 450 100 105 1.295 60
2 51 64.4 6.7 10 150 30 450 100 120 1.884 60
2.1/2 64 78 7 10 150 30 450 90 245 2.504 60
3 76 90.4 7.2 10 150 30 450 90 290 3.041 60
4 102 120.4 9.2 10 150 30 450 90 470 5.068 60
