W-UHMWPE
|

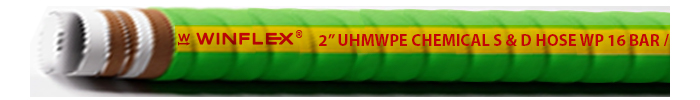

UHMWPE CHEMICAL SUCTION AND DELIVERY HOSE WP 16 BAR / 230 PSI Chemical Suction Hose is a high pressure, high temperature suction and discharge hose designed to handle many commonly used acids, chemicals and solvents. Chemical Suction hose construction incorporates a Smooth Ultra High Molecular Weight Polyethylene (UHMWPE), with EPDM cover that features a temperature rating to 100°C and will not leach into and contaminate the product being conveyed. The dual wire helix provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground. The cover is resistant to abrasion, mild chemicals and ozone. |
|
Tube |
Clear, Smooth Ultra High Molecular Weight Polyethylene (UHMWPE). |
|
Reinforcement |
Multi plies of synthetic high tensile textile with 2 helix wire providing high crush and kink resistant hose capability. |
|
Cover |
Flat Corrugated cover, EPDM resistant to Chemical, weathering and ozone. Green color |
|
Application |
Designed for in-plant or Tank Truck use, suction and discharge of chemical and solvents. |
|
Temperature |
-40°C to +100°C |
|
Safety Factor |
3:1 |
|
1Pascal=1Bar-1Mpa=10Bar-1Bar |
|
I. D. |
O.D |
WALL THICKNESS |
WORKING PRESSURE |
BURST PRESSURE |
VACUUM |
BEND RADIUS |
WEIGHT (APPROX) |
STANDARD LENGTH |
|||
|
(MAX) |
(MIN) |
(MAX) |
(MIN) |
||||||||
|
Inch. |
Mm |
Mm |
Mm |
Bar |
PSI |
Bar |
PSI |
% |
Mm |
Kg/m |
M |
|
1 |
25 |
37.8 |
6.4 |
16 |
230 |
48 |
690 |
90 |
150 |
0.95 |
60 |
|
1.5 |
38 |
52.8 |
7.4 |
16 |
230 |
48 |
690 |
90 |
220 |
1.53 |
60 |
|
2 |
51 |
65.8 |
7.4 |
16 |
230 |
48 |
690 |
90 |
300 |
2.06 |
60 |
|
3 |
76 |
93.6 |
8.8 |
16 |
230 |
48 |
690 |
90 |
450 |
3.45 |
60 |
